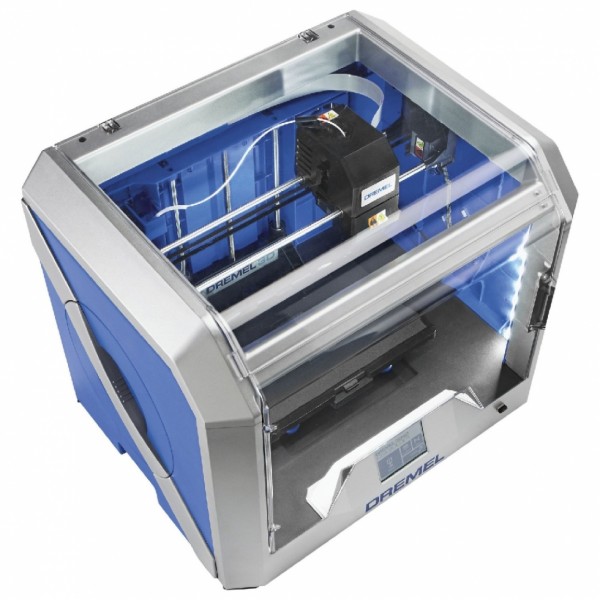

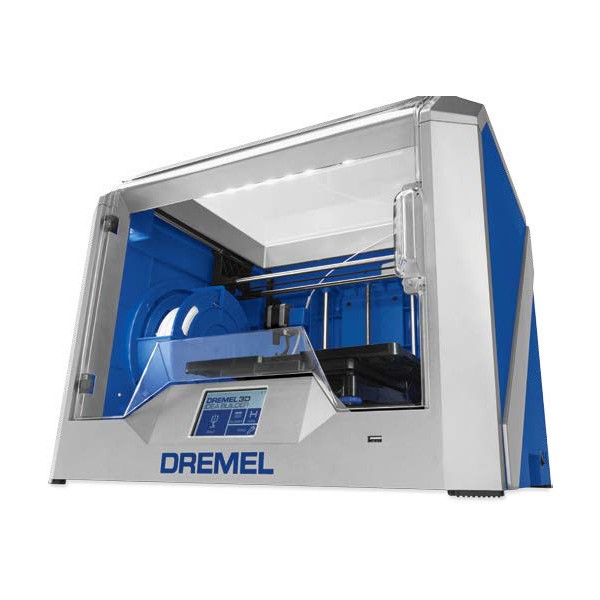

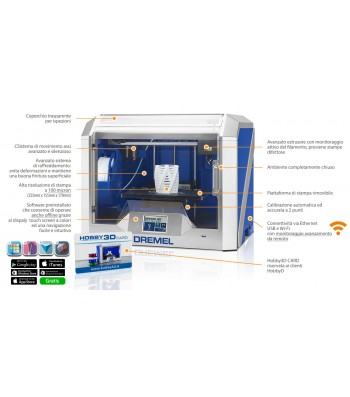

DREMEL IDEA BUILDER 3D40

Regular Price: 1 450,00 € tax incl.

F0133D40JA

Quick Overview:

EXPAND YOUR CREATIVITY

Expand your creativity by building your own prototypes or take a hobby to exciting new levels. Design or personalize items that reflect your own individuality. Satisfy your desire to challenge your mind, while inspiring others to explore their version of 3D possibilities.

Warning: Last items in stock!

Add to Wish List

By buying this product you can collect up to 1450 loyalty points. Your cart will total 1450 points that can be converted into a voucher of 29,00 €.


Back

TECH SPECS

GENERAL INFORMATION

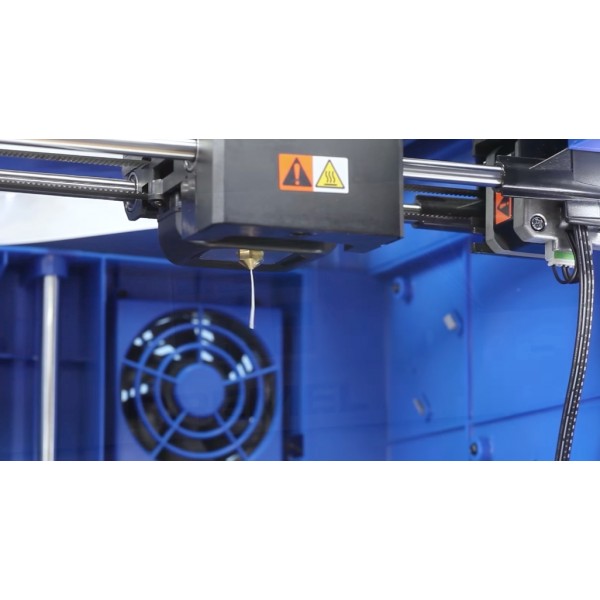

  • Extruder: Single extrusion
  • Extruder temperature: Up to 230°C /397°F

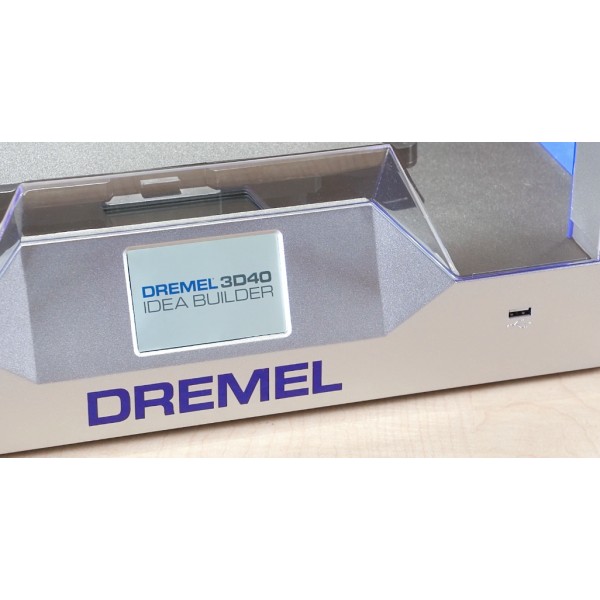

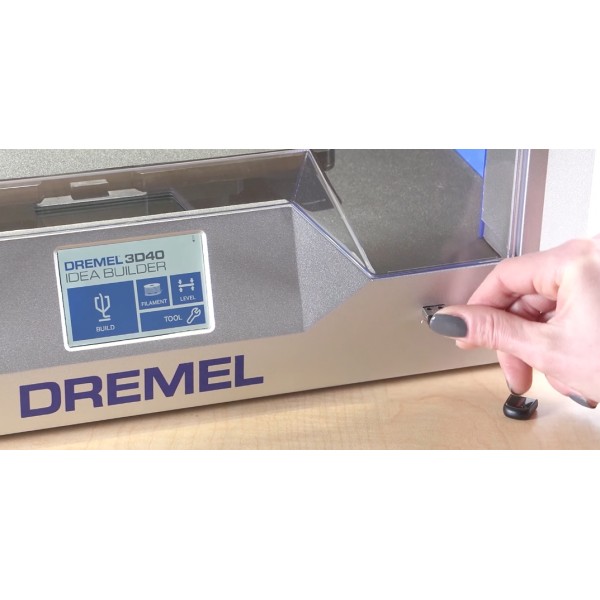

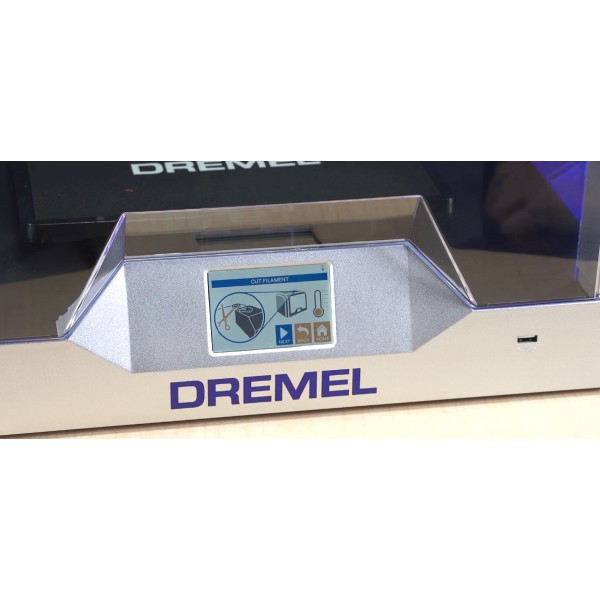

  • Operating Interface: 3.5” full color IPS touch screen
  • Maximum Build Volume: 10” x 6” x 6.7” / 255 mm x 155 mm x 170 mm
  • Layer Thickness: 4 mil | 0.004 inches 100 microns | 0.10 mm
  • USB Stick: Up to 64GB
  • Internal Storage: 4GB
Weight(without spool)
  • 35 pounds (16 kg)
Dimensions
  • Height: 20.25 inches (514 mm)
  • Width: 16 inches (406 mm)
  • Depth: 15.9 inches (403 mm)

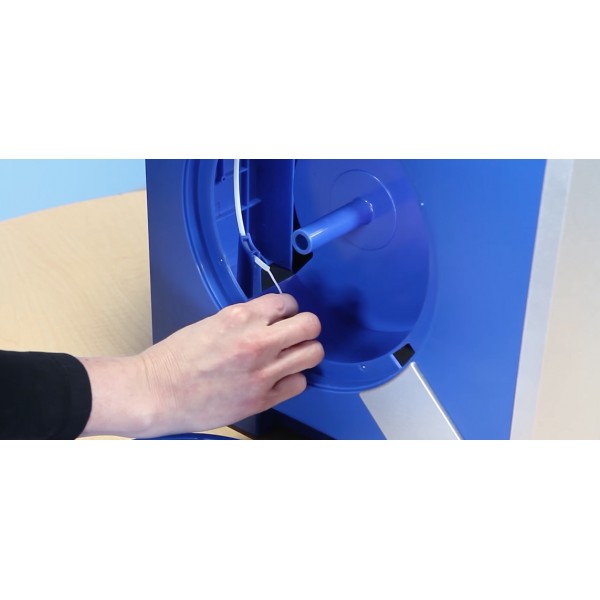

FILAMENT

  • ONLY builds Dremel PLA filaments
  • Filament: 1.75mm PLA (Blodegradable/Renewable)
Storage
  • All polymers degrade with time. The following conditions ensure the material remains high quality:
    • Do not unpack until filament is needed
    • Store at room temperature: 16-29° C / 60 - 85° F
    • Store in a dry environment

SOFTWARE

  • Dremel 3D40 comes with complimentary software. This application converts your 3D digital files into buildable model files.
Windows Requirements
  • Print Studio Software runs on 32 and 64-bit Operating Systems Windows 7 or later
MAC OS X Requirements
  • Print Studio Software runs on Mac OS X 10.8 or later

HARDWARE

  • A PC with the below minimum requirements will be required to run the Print Studio Software
    • Processor: Multi-core processor - 2 GHz or faster per core
    • System RAM: 2 GB
    • Screen Resolution: 1024x768
    • USB Port
    • Video Graphics Card to support OpenGL 2.1 or later

ELECTRICAL

  • 3D40 input rating: 100V - 240V, 50/60Hz 0.8A - 1.8A

ENVIRONMENT

  • Room Temperature: 16-29° C (60 - 85° F)
  • Level workspace
  • Dry workspace environment
  • Power : 230 V
  • Temperature: 230°
